Home > Product > 177.3CC

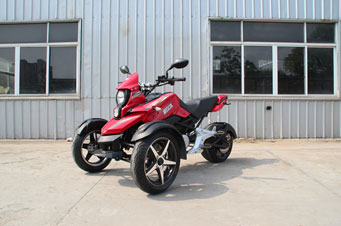

JL175ZK

Dimensions    (L×W×H)2025mm×1220mm×1000mm
Wheelbase1500mm
Min. ground clearance205mm
Curb Mass (kg)178kg
Max. load80kg
Wheel (front&rear)aluminium
Tire (front&rear)140/60-14  /235/30-14
Brake operation (front&rear) hand    brake
Brake mode (front&rear)disk    brake/disk brake
Engine forced    air-cooling, single cylinder, 4 stroke
Rate power6.8kw/7500rpm
Max. torque10N.m/6000rpm
Engine Model1P63QML
Cylinder diameter×stroke mm62.5×57.8
Volume of cylinder ml177.3
Compression ratio10:1
Max. speed75km/h
Start modeelectric/foot
Fuel tank8.0L
